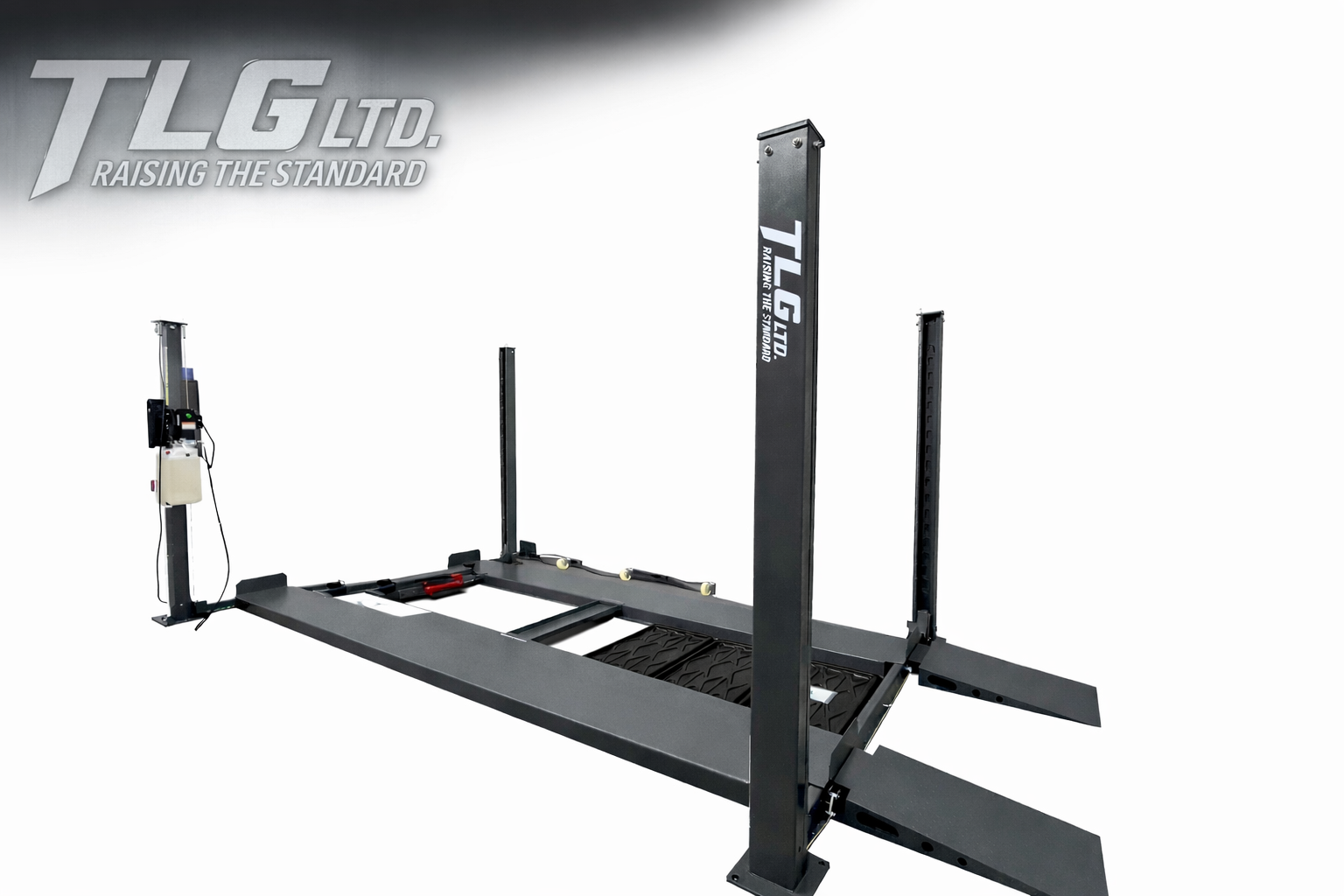

TLG-90PXL – 9000 pound 4-Post High Lift Premium Storage Hoist

Many imported lifts in Canada carry only CE certification, which is a European self-declaration conformity mark and is not considered an electrical safety approval in Canada. The TLG-90PXL uses an ETL/CSA-certified power unit, which meets Canadian electrical safety requirements.

The TLG-90PXL by TLG LTD. is fully certified and designed to provide a dependable, well-built, and versatile parking and storage solution for a wide range of vehicles. Constructed with a reinforced steel structure, an internal locking system, and a user-focused design, it offers both practicality and a clean, professional powder coated finish suitable for residential and commercial garages.

This model features a low approach height of approximately 4.5” when fully lowered, helping accommodate many low-clearance vehicles. With 6" of increased drive-through clearance compared to many commonly available entry-level XL Models, the TLG-90PXL offers added comfort when parking, positioning, or accessing vehicles. Multiple motor mounting positions also provide flexibility during installation to suit different garage layouts. Featuring 17 secure locking height positions.

Power Unit Specifications:

• Model: YL90GA-2

• Voltage: 110V AC (standard)

• Amps: Max 26A 20 amp circuit recommended (typical draw with average car 12-14 amps)

• Motor Output: 2.2kw

• Phase: Single-phase

• Motor Speed: 3,420 RPM

• Frequency: 60 Hz

• Insulation Class: Class B

• Duty Cycle: S3-40%

• Certifications: ETL Listed, CSA C22.2 No. 100 This motor offers fast lift times, quiet operation, and proper Canadian electrical compliance, providing the reliability and safety expected from a premium automotive lift.


Included with Every TLG-90PXL:

• 3 plastic drip trays

• 1 steel jack tray

• 36” extended lightweight ramps

Key Features:

• ETL/CSA-certified Power Unit

• Reinforced design for stability and long-term use

• Internal locking system for a clean and secure setup

• Approx. 4.5” lowered height for easier access with low-profile vehicles

• Enhanced drive-through clearance for added maneuverability

• Multiple motor mounting positions to suit various installation needs

• 17 locking height positions

• 180" platform length

• Smooth lifting and lowering operation

• Suitable for residential and commercial use

• 2-Year Warranty for added peace of mind

Optional Upgrades:

• Sliding Bridge Jack (wheel-off servicing)

• Castor Kit (to reposition the hoist while loaded)

• Turn Table Mounting Bracket (allows you to mount motor to front or back of post for ultimate versatility)

• Delivery, Unloading & White-Glove Installation
